Machinery That Matters For Pharma

We began our journey in 2019 with a vision to revolutionize pharma automation. Today, we offer a wide range of cutting-edge solutions including checkweighers, metal detectors, X-ray inspection systems, and customized software — built for performance, precision, and scalability

Watch Video

Inspection Solutions

Food X-Ray Inspection System. Metal Detectors. Dynamic Check-weighers. Box weight Inspection System.

Conveyor Solutions

Belt Conveyors. Roller Conveyors (Ideal and Powered). Flexible Conveyor . Special Application Conveyors.

Packaging Solutions

Automatic Tapping machine. Strapping Machine. MAP Systems. Flow Wrappers.

Software Solutions

Data-logging Software. Recipe Management Software. Warehouse management Tools. Print and Apply Systems.

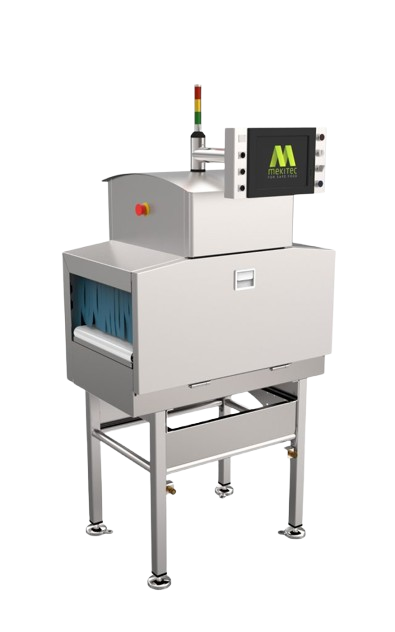

X-Ray Inspection System

New

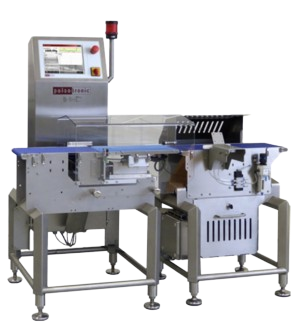

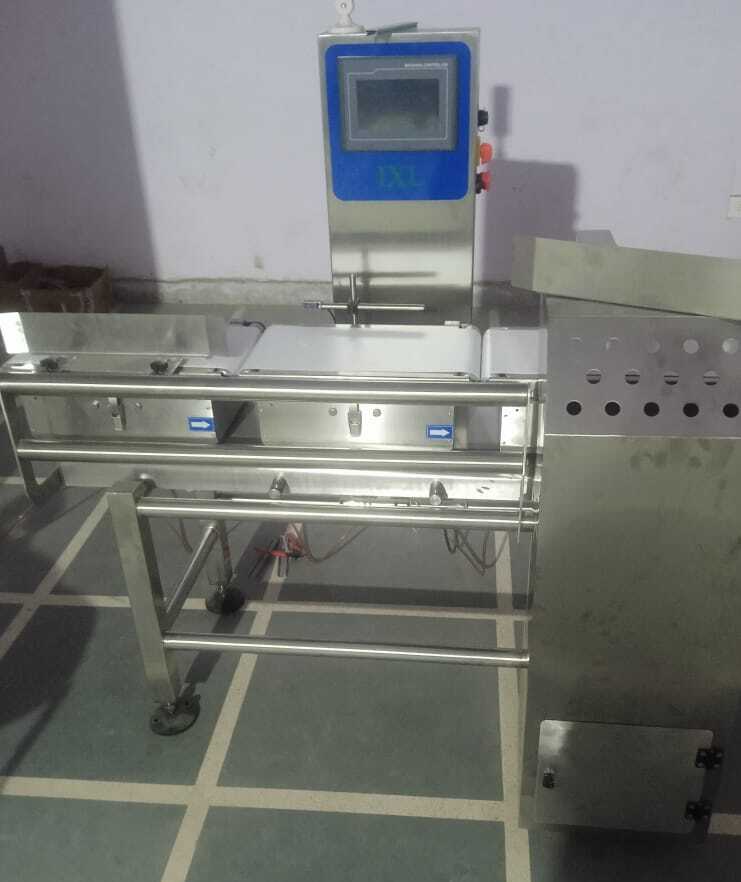

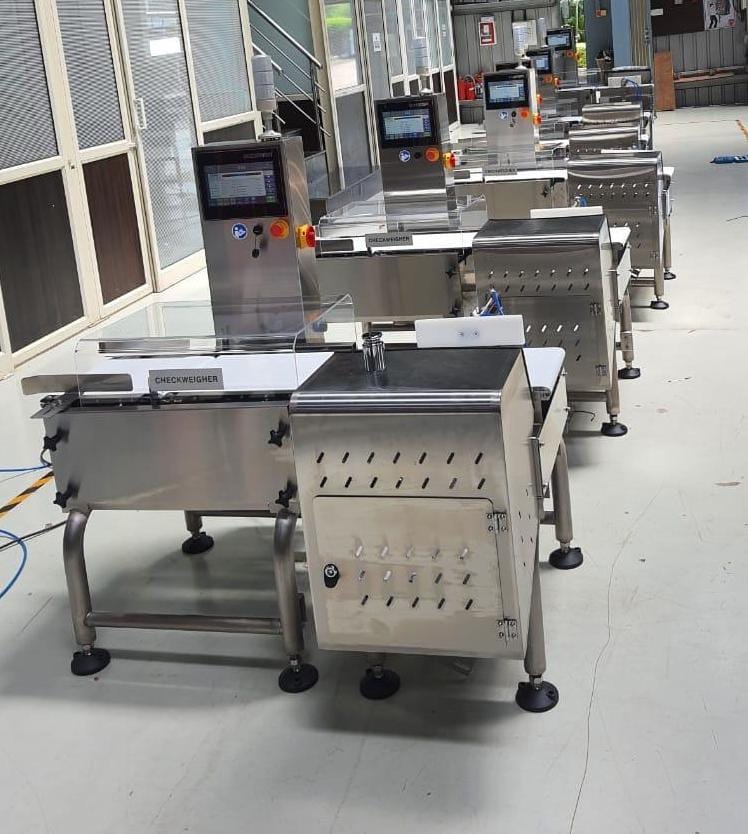

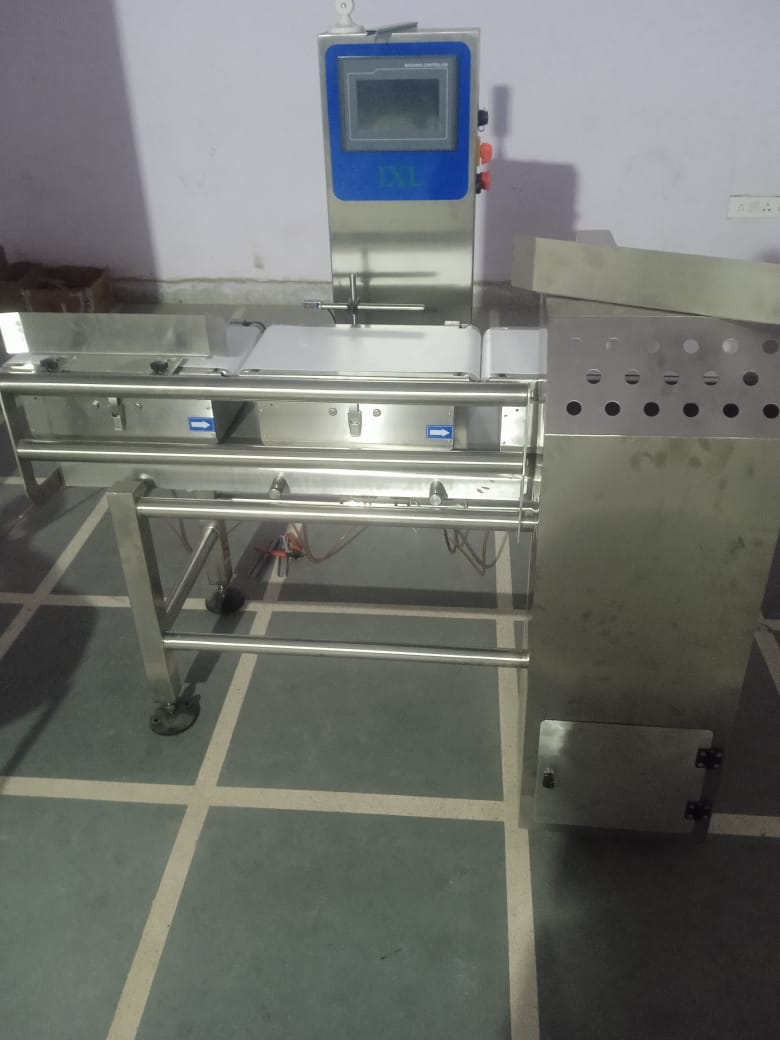

Checkweigher System

New Item

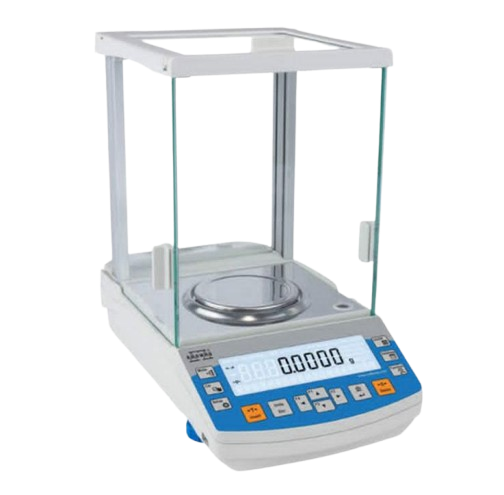

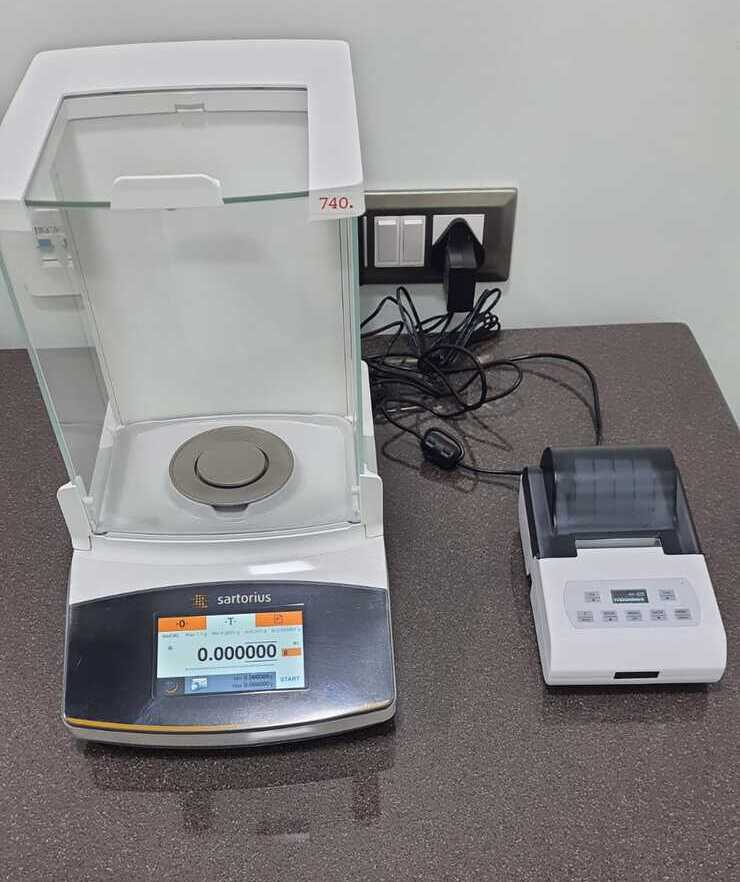

Weighing Scales

New

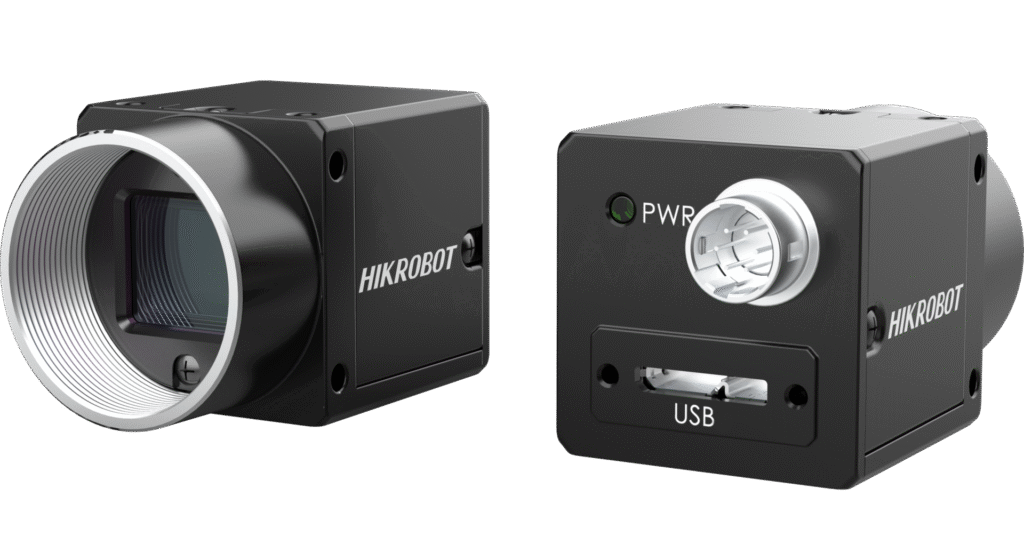

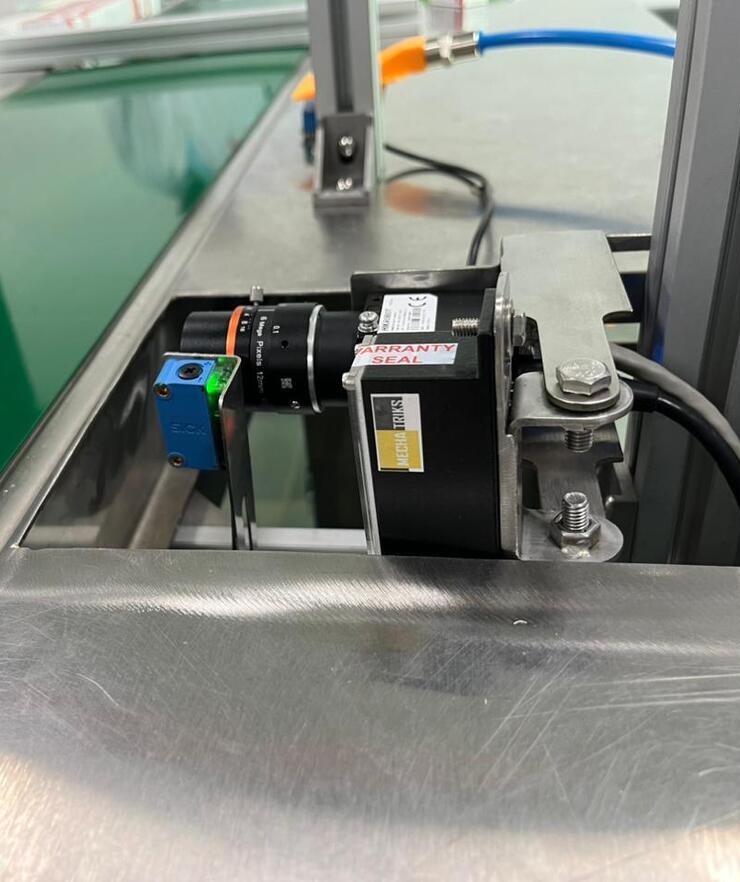

Barcode and Vision Inspection

Reliable Automation for Every Pharma Line

We offer a full suite of pharma-grade machinery — including weighing systems, metal detectors, inspection units, and tablet/capsule manufacturing lines. Our machines help ensure compliance, boost productivity, and enable smart factory transformation.

End-to-End Machinery for Tablets, Capsules & Liquids
More products at lower prices.
Real-time Monitoring, Precision Weighing & Detection.

Email : info@rigelindia.in

We Also Provide These Pharma Equipments

Pharma-Grade Equipment for Accurate, Safe Production

Real-time weighing & checkweighing
Barcode and vision inspection
High-speed processing and accuracy
Minimal human intervention

Inspection Accuracy

Verified precision in capsule, tablet, and packaging verification.

Process Uptime

Continuous runtime with minimal calibration or operator pause.

Our Clients

About

We are a leading provider of pharma-grade machinery including weighing systems, X-ray inspection, checkweighers, and barcode vision tools—built for precision and compliance.

Social Media

Quick Links

Support Links

Locations

Need Help with Our Machines?

Our support team is available to guide you on product selection, compliance setup, or technical queries.

Specification	Details
Display	7″ colour touch screen operator display (800×480)
H/V	16:9
CPU	A9 single core
Memory	RAM 1GB; Flash 1GB
Touch Screen	Resistive touch screen
Keyboard	5 keys (Mechanical Switch)
Housing	ABS Plastic
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	In put: AC100~240V, 50/60HZ Out put: DC12V/2500mA 6V/4Ah rechargeable battery as standard

Specification	Details
Display	7″ colour touch screen operator display (800×480)
H/V	16:9
Touch Screen	Resistive touch screen
Keyboard	5 keys (Mechanical Switch)
Housing	SST
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	In put: AC100~240V, 50/60HZ Out put: DC12V/2500mA 6V/4Ah rechargeable battery as standard

Specification	Details
Display	10.1″ colour touch screen operator display (1280×800)
H/V	16:9
CPU	A9 dual core
Memory	1GB RAM & 8GB Flash
Touch Screen	Resistive touch screen
Keyboard	One Mechanical Key
Housing	SST
Max. Divisions	3,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	0°C ~ +40°C
Power	Input: AC100~240V, 50/60Hz

Specification	Details
Display	10″ TFT colour touch screen operator display
Capacities	6kg~30kg
Pan Size	280x385mm
Housing	ABS plastic
Max. Divisions	3,000e; 2 × 3,000e; 30,000d
ADC Update	≤ 1/10 second
Load Cell Excitation Voltage	5V/150mA
Operate Temp	0°C ~ +40°C
Power	Input: AC 100~240V, 50/60Hz Output: 24V/5000mA

Item	Specification
Model	NHB-Plus II-300, 600, 1500, 3000, 6000 / NHB-Plus III-600, 1500, 3000, 6000
Capacity	300g ~ 6000g
Readability	1mg ~ 20mg
Max. Divisions	300,000d / 600,000d
Pan Size	Φ120mm ~ 140×150mm
Wind Shield	YES / NO
Power Supply	Input: 100~240VAC 50~60Hz, Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS plastic housing; Stainless steel pan
Keyboard	7 membrane keys
Units	g/ct/lb/oz/d/gn/ozt/dwt/mom/tl.t/tl.h/tij/t/bt/n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0/USB 2.0 (type B)/Under hook
Net Weight	1.0kg ~ 1.5kg
Gross Weight	1.6kg ~ 2.1kg
Dimension (W×D×H)	255×200×83/153mm
Operating Conditions	Temperature: 5°C~35°C , Humidity: < 85% R.H.

Specification	Details
Display	1.2" LED display
Keyboard	5 keys (Mechanical switch)
Housing	ABS plastic
Max. Divisions	10,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	-10°C ~ +40°C
Power	AC adapter (12V/500mA), rechargeable battery (6V/4Ah)
Gross Weight	2.5 kg

Item	Specification
Model	EHB Plus II-300 / 600 / 1500 / 3000 / 6000 / III-600 / III-6000
Capacity	300g, 600g, 1500g, 3000g, 6000g
Readability	0.001g to 0.02g depending on model
Max. Divisions	300,000d / 600,000d
Pan Size	Φ120mm / 180x190mm
Wind Shield	YES / NO
Power Supply	Input: 100~240VAC 50~60Hz \| Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS plastic housing; Stainless steel pan
Keyboard	7 membrane keys
Units	g/ct/lb/oz/d/gn/ozt/dwt/mom/tl.t/tl.h/tj/t/bt/n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0/USB 2.0 (Type B)/Under hook
Net Weight	1.8kg to 2.8kg depending on model
Gross Weight	2.6kg to 3.7kg depending on model
Dimensions (WxDxH)	210 x 315 x 90/309mm
Operating Conditions	Temperature: 10°C~35°C, Humidity: < 85% R.H.

Specification	Details
Display	4.3 inch color LCD display, resolution 480×272 px
Power	AC adapter (100~240V AC/12V 2500mA), rechargeable (lithium battery 7.4V/5200mAh) (option)
Memory	999 PLU and 30,000 weighing data
Pan Size	230×300 mm
Operating Temperature	-10°C to +40°C
Interface	RS232x1, USB2.0 x1, RJ45x1
Keyboard	37 membrane keys

Specification	Details
Display	LCD display, digit height 30 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions
Power	Rechargeable Li battery pack internal, operating time up to 70 h, battery pack accessible from the outside, which means it is easy to replace
Remote Controller	Dry battery cell, 12 V 23A
Operating Temperature	-10 °C to +40 °C
Mass Production Unit	IP65

Item	Specification
Model	TB-E-300H, TB-E-600, TB-E-1000, TB-E-1500, TB-E-3000H, TB-E-600H, TB-E-6000H
Capacity	300g / 600g / 1000g / 1500g / 3000g / 600g / 6000g
Readability	0.001g / 0.01g
Max. Divisions	Up to 300,000d / 600,000d
Pan Size	Φ120mm / 180×190mm
Wind Shield	Yes (except TB-E-6000H)
Power Supply	Input: 100–240V AC 50–60Hz, Output: DC 12V 500mA
Battery	6V 1.2Ah rechargeable battery
Display	16.5mm digit LCD display with white LED backlight
Interface	DB9 RS232 port
Housing	ABS Plastic Housing; Stainless Steel Pan; Stainless Steel Pan Support Cover; Glass Wind Shield
Keyboard	7 membrane keys
Units	g / ct / lb / oz / d / gn / ozt / dwt / mom / t / t.t / h / tj / t / bt / n
Applications	Basic Weighing, Parts Counting, Percent Weighing, Accumulation
Option	Bluetooth 5.0 / USB 2.0 (Type B)
Net Weight	2.8kg / 1.8kg / 2.8kg / 1.8kg
Gross Weight	3.7kg / 2.6kg / 3.7kg / 2.6kg
Dimensions (W×D×H)	210 × 315 × 309mm / 210 × 315 × 90mm
Operating Conditions	Temperature: 10°C~35°C, Humidity: <85% R.H.

Specification	Details
Display	LCD display, digit height 52 mm, with white color LED backlight
Power	AC adapter (12V/500mA), rechargeable battery (lead acid battery 6V/4Ah), operation time 70 hours
Operating Temperature	-10°C to +40°C

Specification	Details
Display	1.2″ LED display
Keyboard	5 keys (Mechanical switch)
Housing	ABS plastic
Max. Divisions	6,000e; 30,000d
Load Cell Excitation Voltage	5V/150mA
ADC Update	≤ 1/10 second
Operate Temp	-10°C ~ +40°C
Power	AC adapter (12V/500mA), rechargeable battery (6V/4Ah)
Gross Weight	2.5kg

Specification	Details
Display	20mm digit LCD display with white LED backlight
Capacities	3kg ~ 30kg
Pan Size	230 x 300mm
Keyboard	20 keys (Membrane Keyboard)
Housing	ABS Plastic
Max. Divisions	3,000e; 2 x 3,000e; 30,000d; 60,000d
ADC Update	≤ 1/10 second
Operating Temperature	-10°C ~ +40°C
Power	AC Adapter (12V/500mA), internal rechargeable battery (6V/4Ah)
Gross Weight	5kg

Specification	Details
Display	24mm digit LCD display, with white LED backlight
Capacities	3kg ~ 30kg
Platform Size	230 x 300mm
Keyboard	4 keys (Membrane keyboard)
Housing	ABS Plastic
Max. Divisions	Up to 60,000d
ADC	Sigma Delta
ADC Update	≤ 1/10 second
Operating Temperature	0°C ~ +40°C
Power	AC Adapter (12V/500mA), Internal Rechargeable Battery (6V/4Ah)
Gross Weight	5kg
